Yozma IN 10 Electric Dirt Bike
Dominant Power. Pro-Grade Precision. The Yozma IN 10 Electric Moto.
The Yozma IN 10 is a high-performance electric dirt bike engineered to redefine off-road boundaries for teens and adults. Unlike standard electric bikes, the IN 10 features a centrally mounted 2600W brushless mid-drive motor, providing an incredible 146 Nm of peak torque. This is a serious machine built for technical trails, steep climbs, and high-speed maneuvers, delivering a cinematic riding experience that gas bikes simply cannot match.Performance & Size

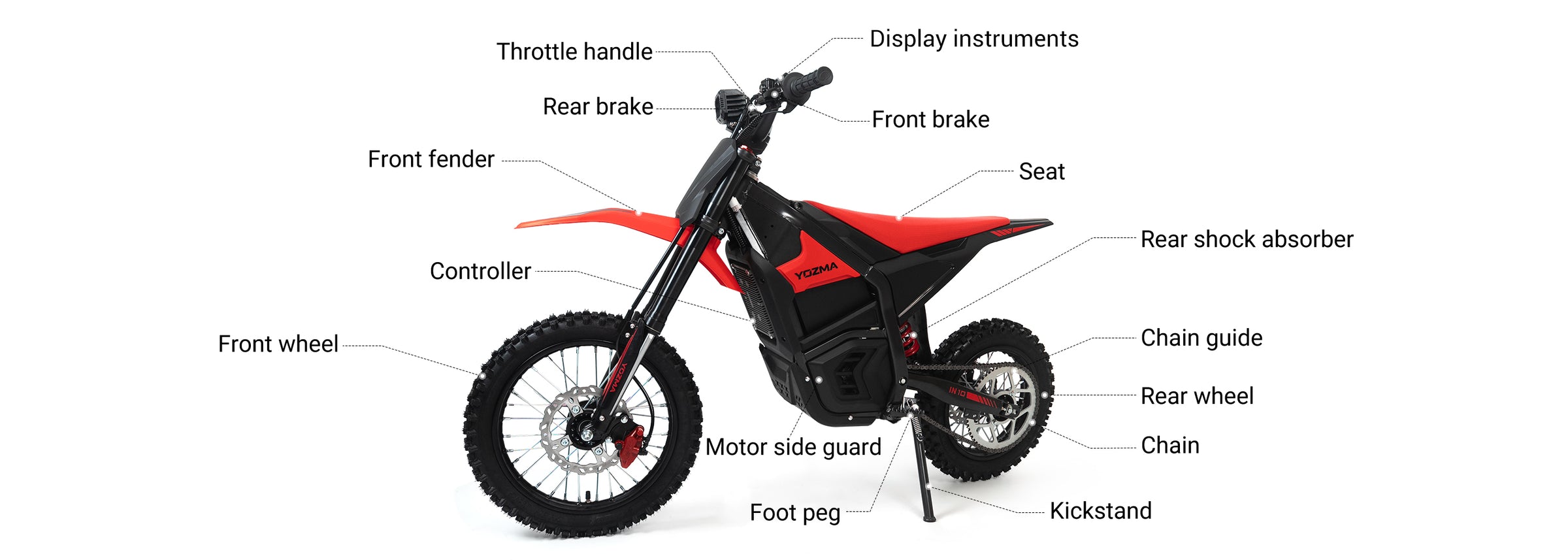

Parts Diagram
Specifications
| Top Speed | 28-40 Mph |
| Range | 53 Miles |
| Motor | 2600W Peak Brushless Mid-Drive |
| Battery | 48V 23.4Ah Lithium-ion |
| Suspension Type | Front Hydraulic / Rear Nitrogen Air Shock |
| Brakes | Heavy-Duty Hydraulic Disc |
| Charger | 48V 5A Charger |
| Charger Voltage | 100-230V, 50-60Hz |
| Charging Time | 0%-100% 5.0-6.0 Hours |
| Display | LCD Display |
| Ride Mode | Three-speed Zero Start |
| Drivetrain | Chain Drive |
| Frame | High Carbon Steel |
| Chain | 116 links (420 chain) Heavy Duty Chain |
| Max Climbing | 30 degrees |
| Front Suspension | Hydraulic Suspension |
| Rear Suspension | Nitrogen Shock Absorber |
| Waterproof | IPX6 |

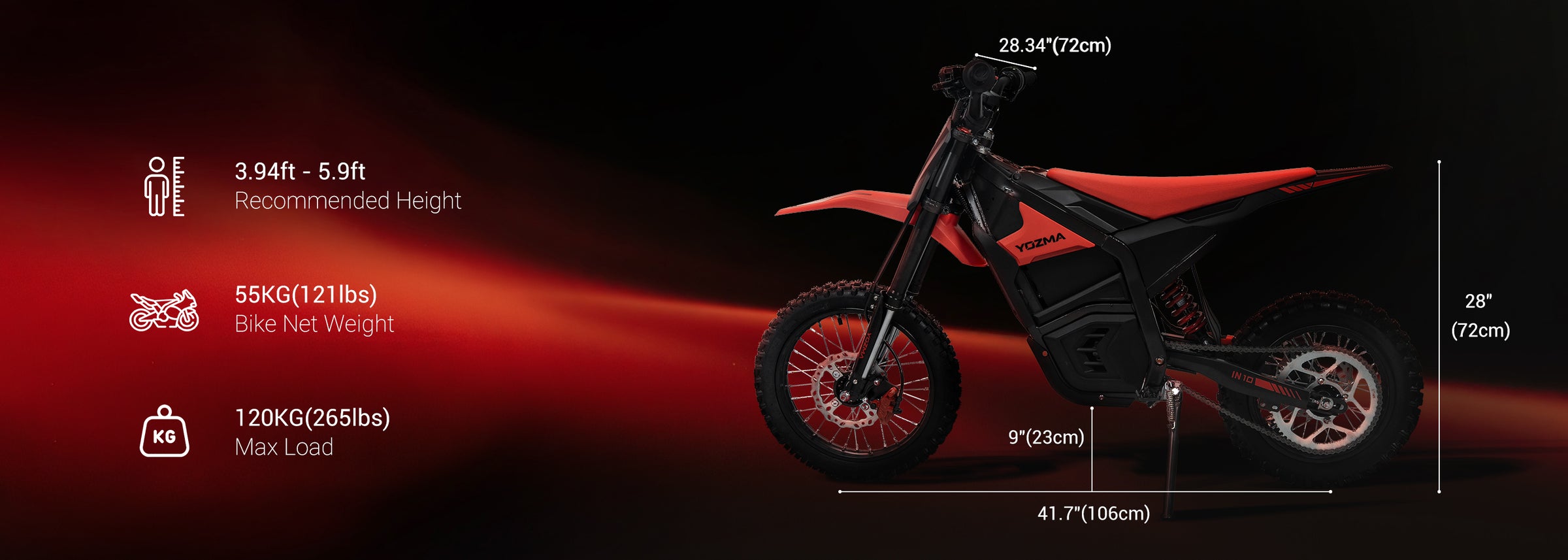

| Suitable Height | 3.94ft - 5.9ft |
| Seat Height | 28" (72cm) |
| Wheelbase | 41.7" (106cm) |
| Ground Clearance | 9" (23cm) |
| Handlebar Width | 28.34" (72cm) |
| Bike Weight | 121lbs (55kg) |
| Maximum Load | 265lbs (120kg) |
| Tires | 14/12" |
Hyper-Performance Drivetrain:
-

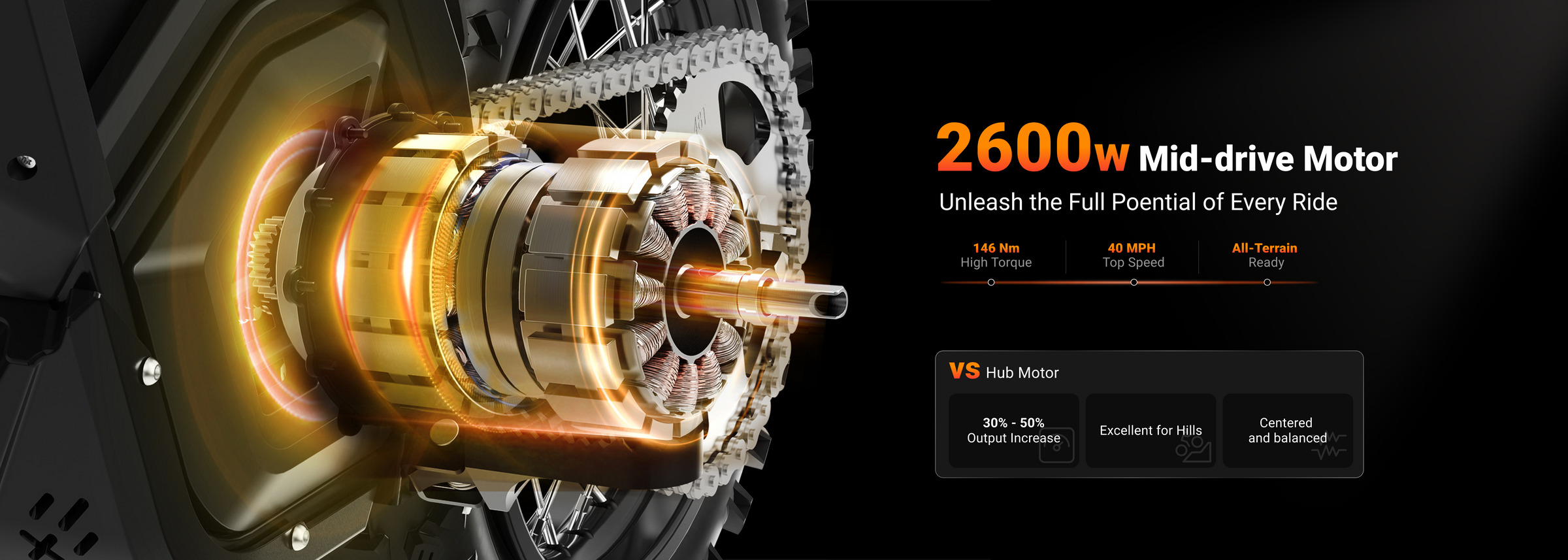

2600W Peak Mid-Drive Motor: Experience blistering acceleration and a top speed of up to 40 MPH. The mid-drive placement ensures a perfect center of gravity for jumps and aggressive cornering.
-
Massive 146 Nm Torque: Conquer 30-degree inclines with ease. This bike provides the raw pulling power needed for deep mud, loose gravel, and technical hill climbs.
-
High-Capacity 23.4Ah Battery: The 48V lithium-ion system offers an expansive 53-mile range, allowing for full days of trail riding. The included 5A fast-charger gets you back on the dirt in record time.
Competition-Level Suspension & Braking:
-
Pro-Series Nitrogen Air Shocks: Featuring a sophisticated nitrogen-charged rear shock absorber and hydraulic front suspension, the IN 10 soaks up heavy landings and trail chatter with professional-level dampening.
-
Heavy-Duty Hydraulic Brakes: Total control in all conditions. High-friction hydraulic disc brakes provide immediate, fade-free stopping power for maximum rider safety.
-
Rugged 14/12" Wheel Setup: Equipped with heavy-duty 420-chain drive and knobby off-road tires, this bike is built to handle the most punishing environments.
Smart Design & Safety:
-
IPX6 Waterproofing: Ride through rain, mud, and slush with confidence. The IN 10 is fully sealed to protect high-voltage components.
-
UL Certified Safety: Built to the highest international standards, ensuring battery stability and electrical safety for every ride.
-
Quick-Start Assembly: Get from the box to the trail in under 30 minutes with an 85% pre-assembled design.
Documents
User Manual: Download HERE
