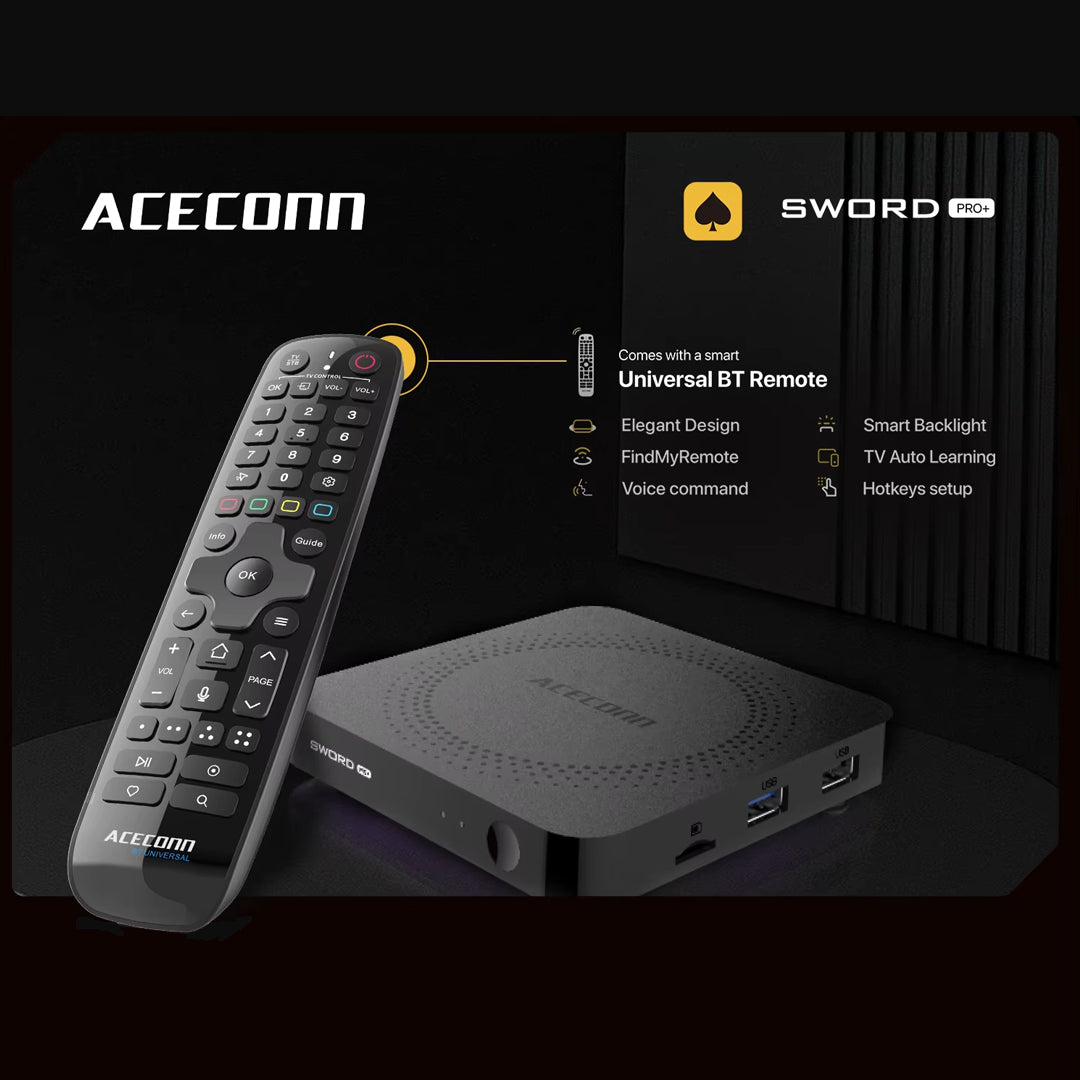

ACECONN Sword Pro+ Android Media Box

Latest Android 11 Media Box – Enjoy a fast, smooth, and user-friendly Android experience powered by Android 11, with access to popular apps like Netflix, YouTube, Google Play Store, and more.

Smooth & Responsive Performance – Powered by the Amlogic S905W2 Quad-Core ARM Cortex-A35 (64-bit) processor (up to 1.8GHz), delivering smooth navigation, quick app launches, and reliable performance.

4K Ultra HD Video Support – Supports up to 4K@30fps Ultra HD video decoding, providing clear visuals and vibrant colors on compatible displays.

AV1 Codec Support – Advanced AV1 video decoding for better picture quality with lower data usage, ideal for both high-speed and limited internet connections.

Memory & Storage –

• 2GB RAM for smooth multitasking

• 16GB internal storage for apps and media (expandable via TF card)

Stable Connectivity –

• Dual-band Wi-Fi (2.4GHz & 5GHz) for stable and fast wireless connection

• Bluetooth 5.1 for easy pairing with headphones, speakers, keyboards, and controllers

• Ethernet support for wired connectivity

Multiple Ports & Expansion – HDMI output, USB ports, TF card slot, and optical audio support for flexible setup options.

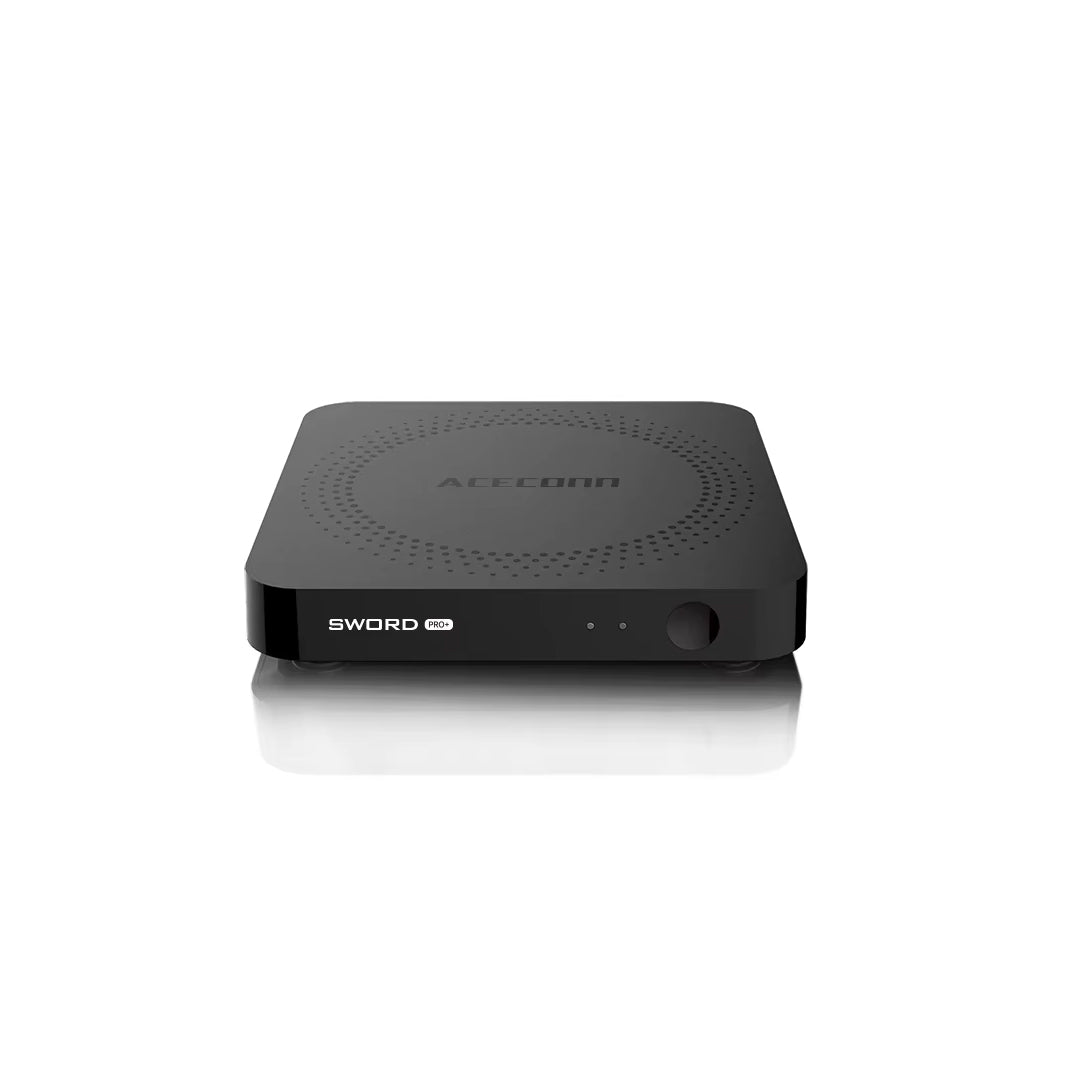

Compact & Versatile Design – A compact Android media device designed for everyday entertainment, app usage, and media playback.

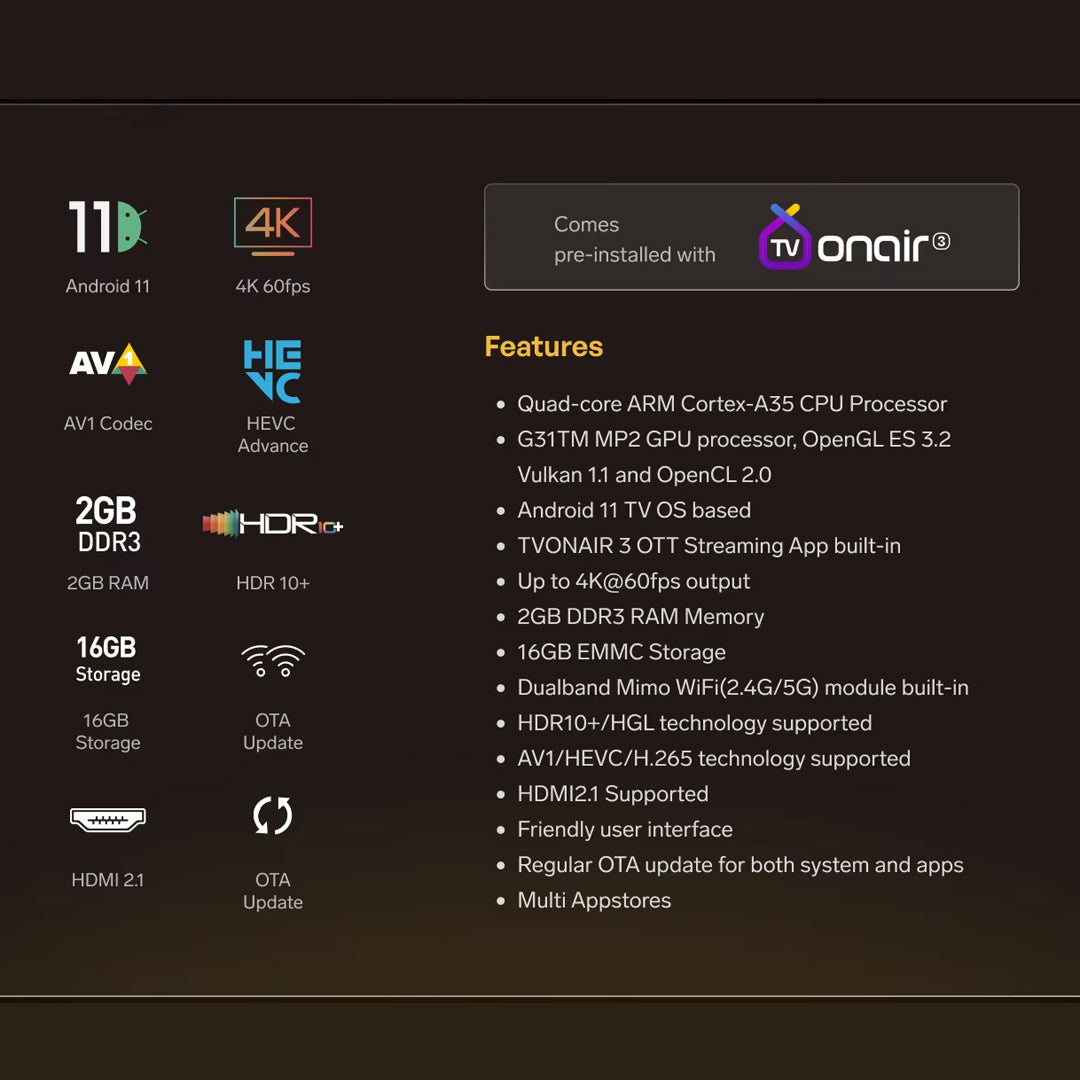

Main Features

OS

• Android 11

Dimension

• 107*107*20 (mm)

Processor

• Quad-core ARM Cortex-A35 CPU

GPU

• G31 MP2 GPU processor, OpenGL ES 3.2 Vulkan 1.1 and OpenCL 2.0

RAM Memory

• 2GB

Storage

• 16GB

Network

• IEEE 802.11 b/g/n/ac, 2.4g/5g dual-band Wi-Fi with dual antenna, 10/100 Ethernet MAC

Bluetooth

• Bluetooth 5.1

Housing

• Black Color

DC Power

• 5V/2A Input

HDMI

• Up to 4K*2K UHD Output

AV OUT

• 480i/576i standard definition output

USB

• 2* USB 2.0

RJ45

• Ethernet Interface 10/100M

Optical

• Optical Port for digital audio output

TF Card

• Support 4GB/8GB/16GB/32GB/64GB

Power

• DC 5V/2A

LED Indicator

• Working/Blue, Standby/Red, Wi-Fi/White

Video&Picture

• VideoEngine (AVE) with dedicated hardware decoders and SW H.264/VP8 encoders
• Support multi-video decoder up to 4x1080P@60fps
• Support multiple ‘secured’ video decoding sessions and simultaneous decoding and encoding
• Video/Picture Decoding
• AV1 MP-10@L5.1 up to 4Kx2K@30fps
• VP9 Profile-2 up to 4Kx2K@30fps
• H.265 HEVC MP-10@L5.1 up to 4Kx2K@30fps
• AVS2-P2 Profile up to 4Kx2K@30fps
• H.264 AVC HP@L5.1 up to 4Kx2K@30fps
• MPEG-4 ASP@L5 up to 1080P@60fps (ISO-14496)
• WMV/VC-1SP/MP/AP up to 1080P@60fps
• AVS-P16 (AVS+)/AVS-P2 JiZhun Profile up to 1080P@60fps
• MPEG-2 MP/HL up to 1080P@60fps (ISO-13818)
• MPEG-1 MP/HL up to 1080P@60fps (ISO-11172)
• Multiple languages and multiple format sub-title video support
• MJPEG and JPEG unlimited pixel resolution decoding (ISO/IEC-10918)
• Supports JPEG thumbnail, scaling, rotation, and transition effects
• Supports *.mkv, *.wmv, *.mpg, *.mpeg, *.dat, *.avi, *.mov, *.iso, *.mp4 and *.jpg file formats

Audio

• Supports MP3, AAC, WMA, RM, FLAC, Dolby Audio Optional, and DTS Optional, and is programmable with 7.1/5.1 down-mixing
• Low-power VAD
• Built-in serial digital audio IEC958 input/output, SPDIF input/output, and PCM input/output, SPDIF supports 192KHz 16/24/32bit stereo
• TDM/PCM/I2S audio interface supporting 2-channel input and 8-channel (7.1) output
• Digital microphone PDM input with programmable CIC, LPF, HPF, support up to 8 DMICs
• Built-in stereo audio DAC
• Supports concurrent dual audio stereo channel output with a combination of analog+PCM or I2S+PCM


• HD JPEG, BMP, GIF, PNG, and TIF

Language

• English, French, German, Spanish, Dutch, Italian, Arabic, Russian, Portugal, etc multilateral languages

The Unboxing

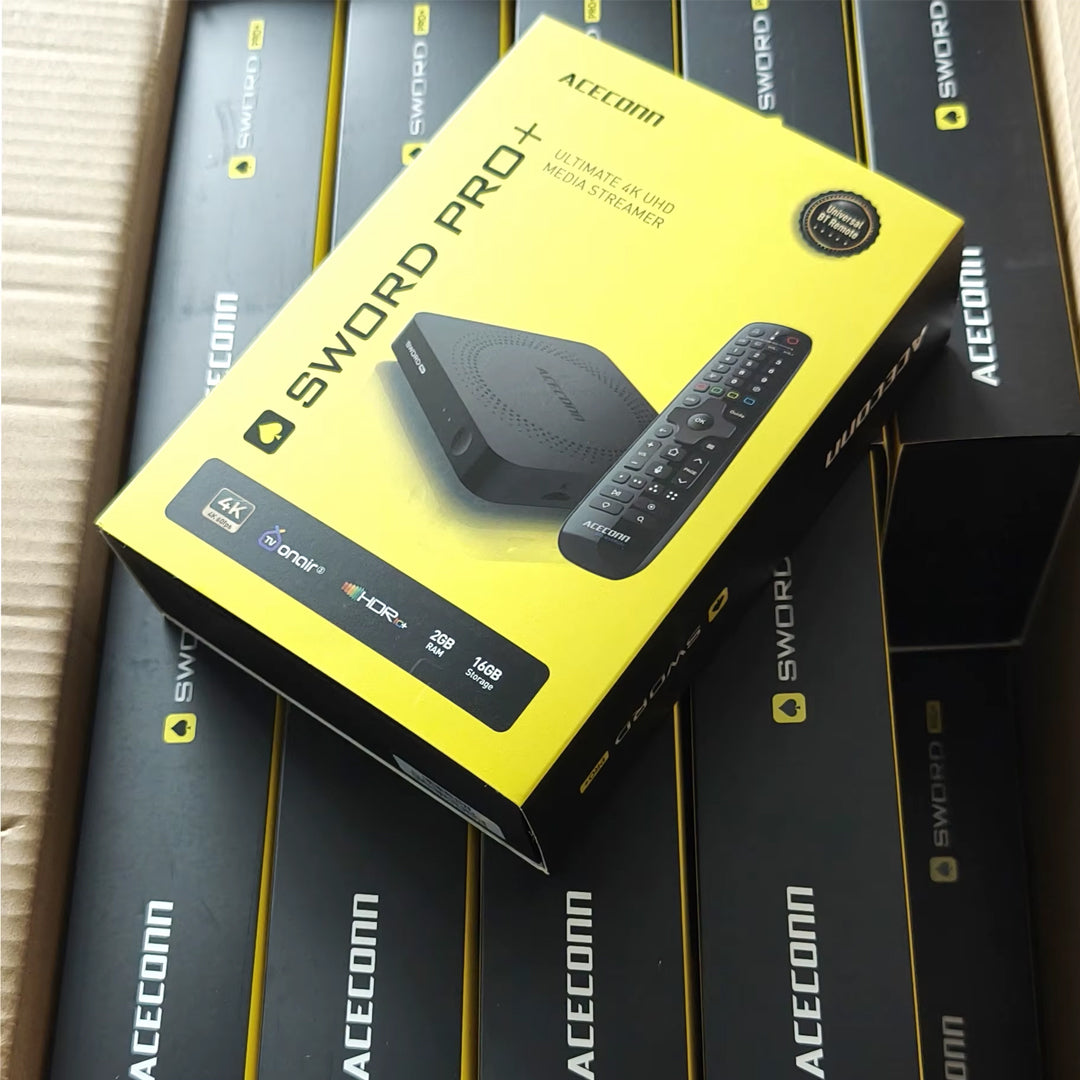

Packages

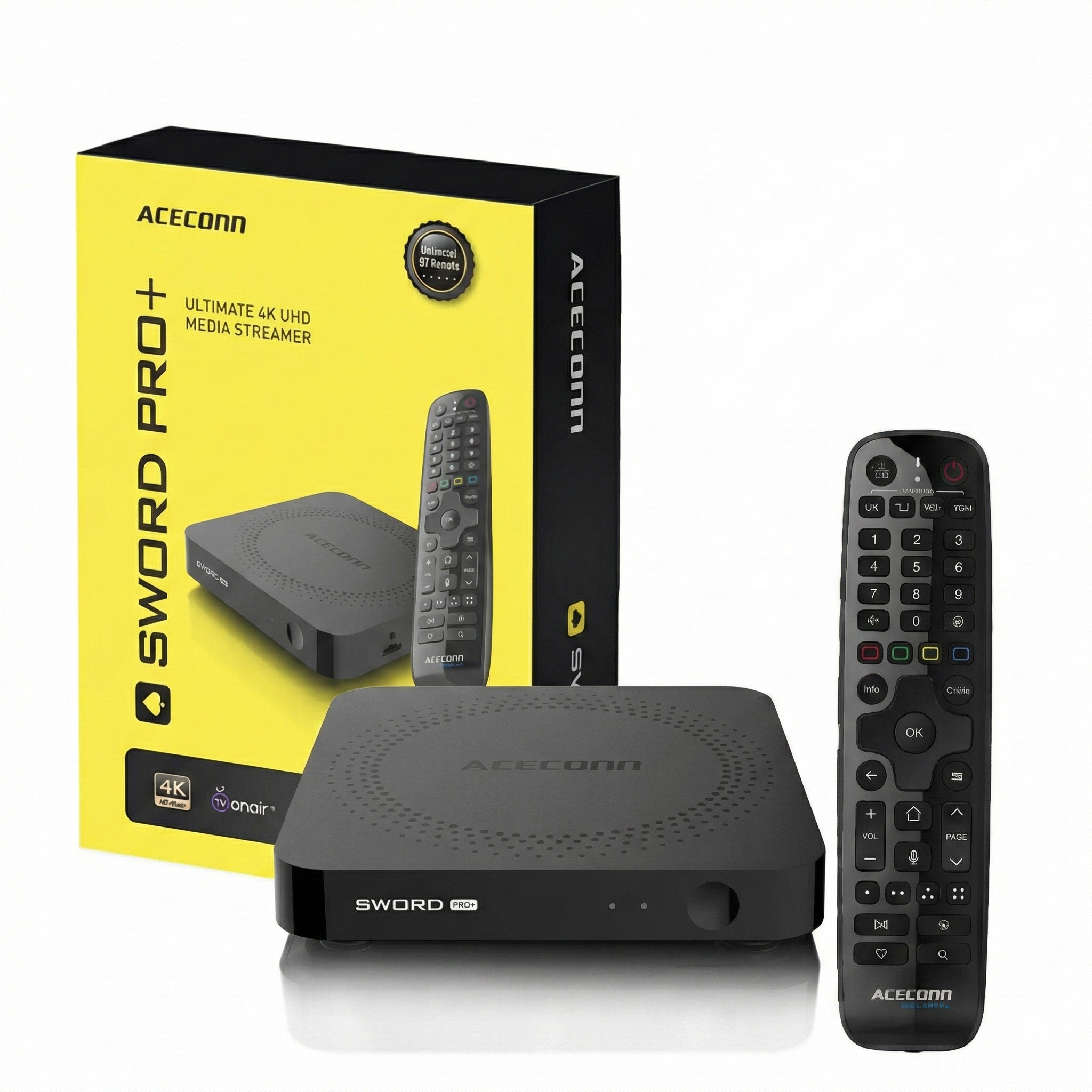

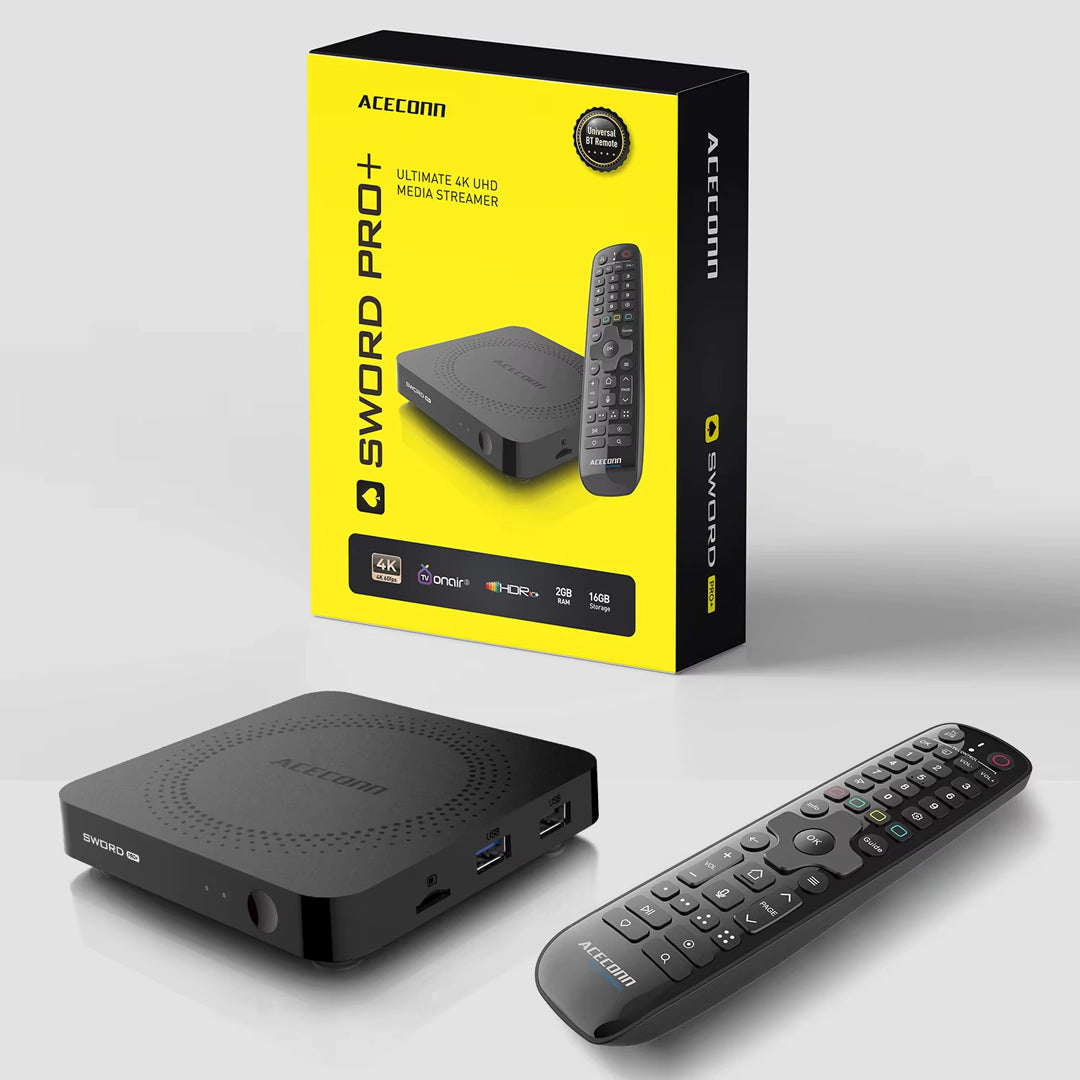

The main device is accompanied by a Power Adapter, an HDMI Cable, a Remote Controller, and a User Manual.
